AD20/70

AD20/70



Our AIRSTREAM range of diesel air compressors by Westair offer portable and stationary models powered by engines. With excellent reliability and robust design for Australian conditions these air compressors are designed to tackle a wide range of applications where power isn’t available. The AD20 comes with an electric start diesel engine as standard complete with battery and leads.

Featuring an auto idle system factory set at 120psi cut out as well as slow revving cast iron pumps with replaceable cartridge element intake air filters and AS1210 design registered air receivers.



Download Brochure

Download Unit Parts Drawing

Download Pump Parts Drawing



Description

Slow revving cast iron pump
Stainless steel reed valves
AS1210 design registered air receivers
Full engine auto idleback
Metal air intake filters with replaceable cartridge elements
Reliable electric start HAILIN Diesel engine complete with battery and leads

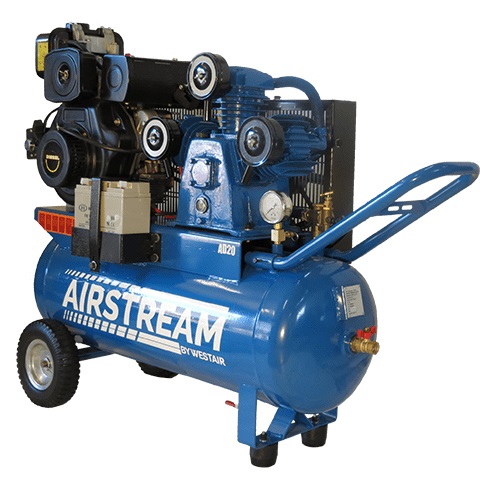

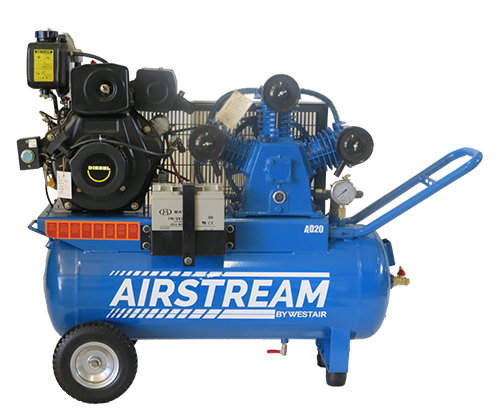

20 CFM PORTABLE DIESEL HAILIN POWERED AIR COMPRESSOR

Displacement: 549 L/min (19.4 CFM)
Free Air Delivery: 373 L/min (13.2 CFM)
Max Pressure: 827kPa (120 psi)
Motor: HAILIN
Pump Cylinders: 3
Tank size: 70 Litres
Noise level: 82 dB(A)
Weight: 83 kg
Dimensions (LxWxH): 94 x 32 x 76 cm
WARRANTY:
Air Receiver: 5 years
Pump: 1 years
HAILIN Engine: 1 year
All other parts: 1 year
