WP20/110 5.5hp Honda Petrol


Displacement: 571 L/min (20.2 CFM)
Free Air Delivery: 416 L/min (14.7 CFM)
Max Pressure: 965 kPa (140 psi)
Motor: Honda GX200
Pump Cylinders: 3
Tank size: 116 Litres
Noise level: 82 dB(A)
Weight: 128 kg
Dimensions (LxWxH): 128 x 46 x 84 cm
Air Receiver: 5 years
Pump: 7 years
Honda Engine: 3 years
All other parts: 1 year


• Heavy duty slow revving pump
• AS1210 air receiver
• Stainless steel reed valves
• Genuine Honda petrol engine
• USA Conrader load genie valve and auto idle
• Replaceable cartridge element intake air filters
• Electric start engines with or without battery and leads are available as optional extras (cost applies)

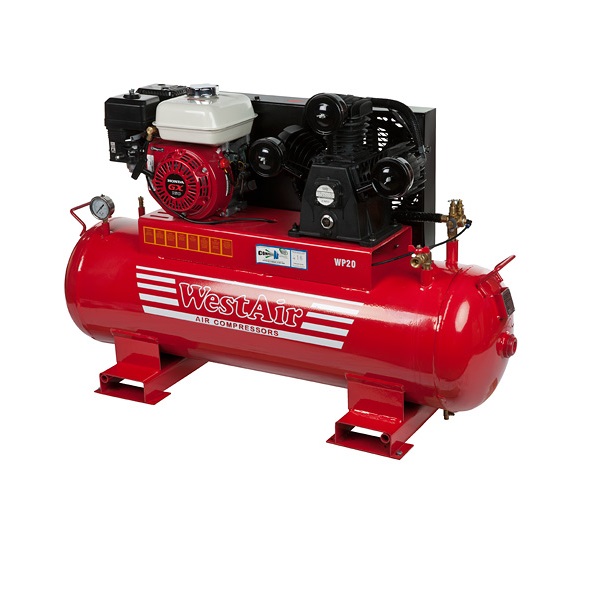

Our petrol Honda powered WP20/110 offers a slow revving high output cast iron pump with replaceable cartridge element intake air filters on AS1210 116L air receiver with the USA Conrader load genie valve and auto idle. Factory set at 125psi cutout but adjustable to 140psi if required.

The genuine Honda GX200 petrol engine provides economical and reliable power.

Download Brochure

Download Unit Parts Drawing

Download Pump Parts Drawing


Additional information

Weight 128 kg
Dimensions 128 × 46 × 84 cm
