WAV22 – Three Phase Rotary Compressor – 22KW

WAV22 – Three Phase Rotary Compressor – 22KW

Introducing the new range of Rotary Vane compressors from Westair—our most advanced series yet. Engineered with cutting-edge technology, these compressors are designed to significantly reduce your operational costs by maximizing energy efficiency and built to last with exceptional durability.

Imagine a compressor that not only meets your performance needs but also cuts down on energy bills and maintenance expenses. That’s the Westair promise: powerful, reliable, and cost-effective solutions that keep your business running smoothly while protecting your bottom line.

Upgrade today to our Rotary Vane compressors and experience long-term savings that truly make a difference. Make the smart choice—invest in efficiency and durability that work as hard as you do.

Description

Permanent Magnet Thee Phase Motor

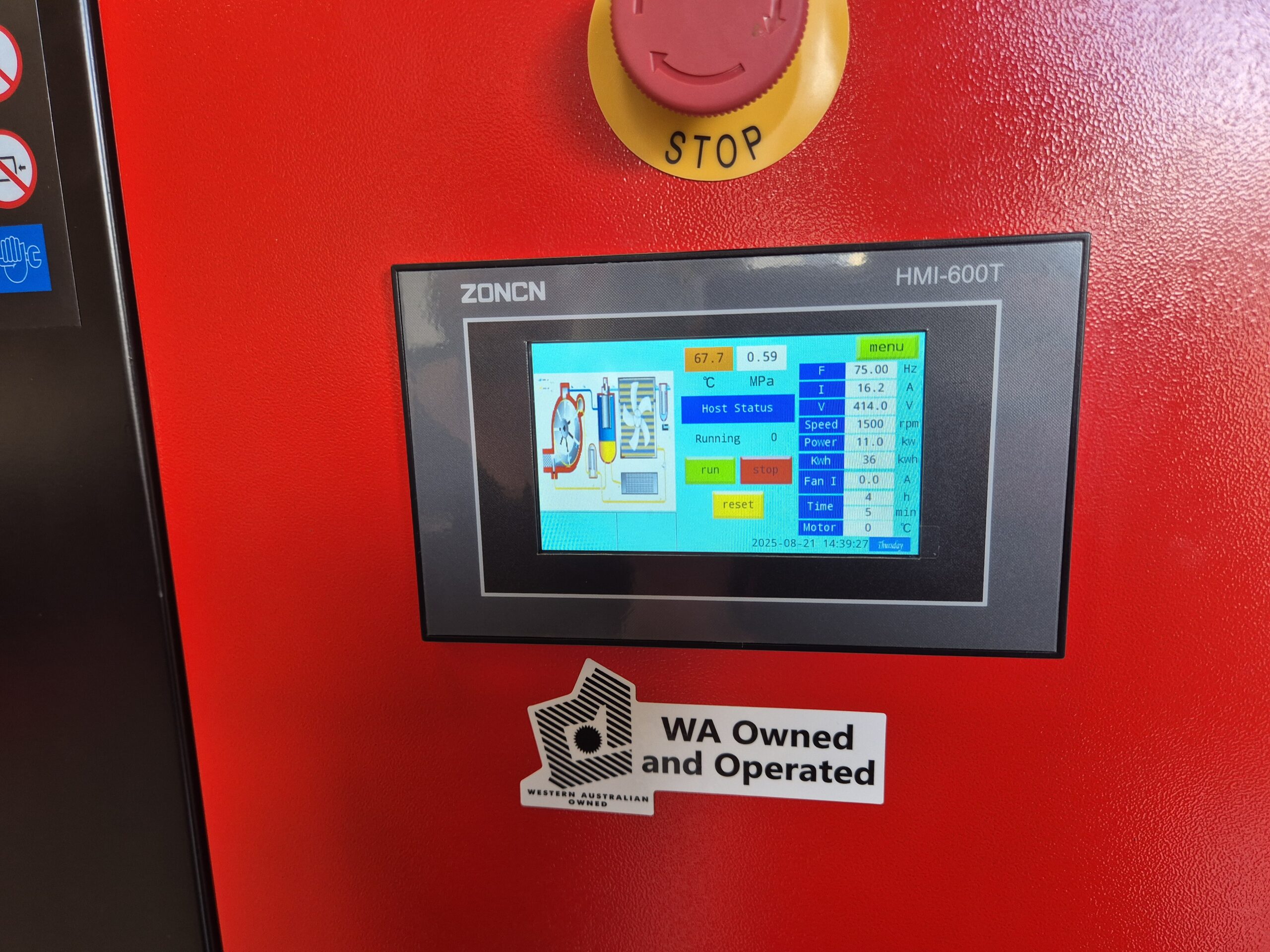

Integrated Digital LCD Touch Display for Control and Monitoring

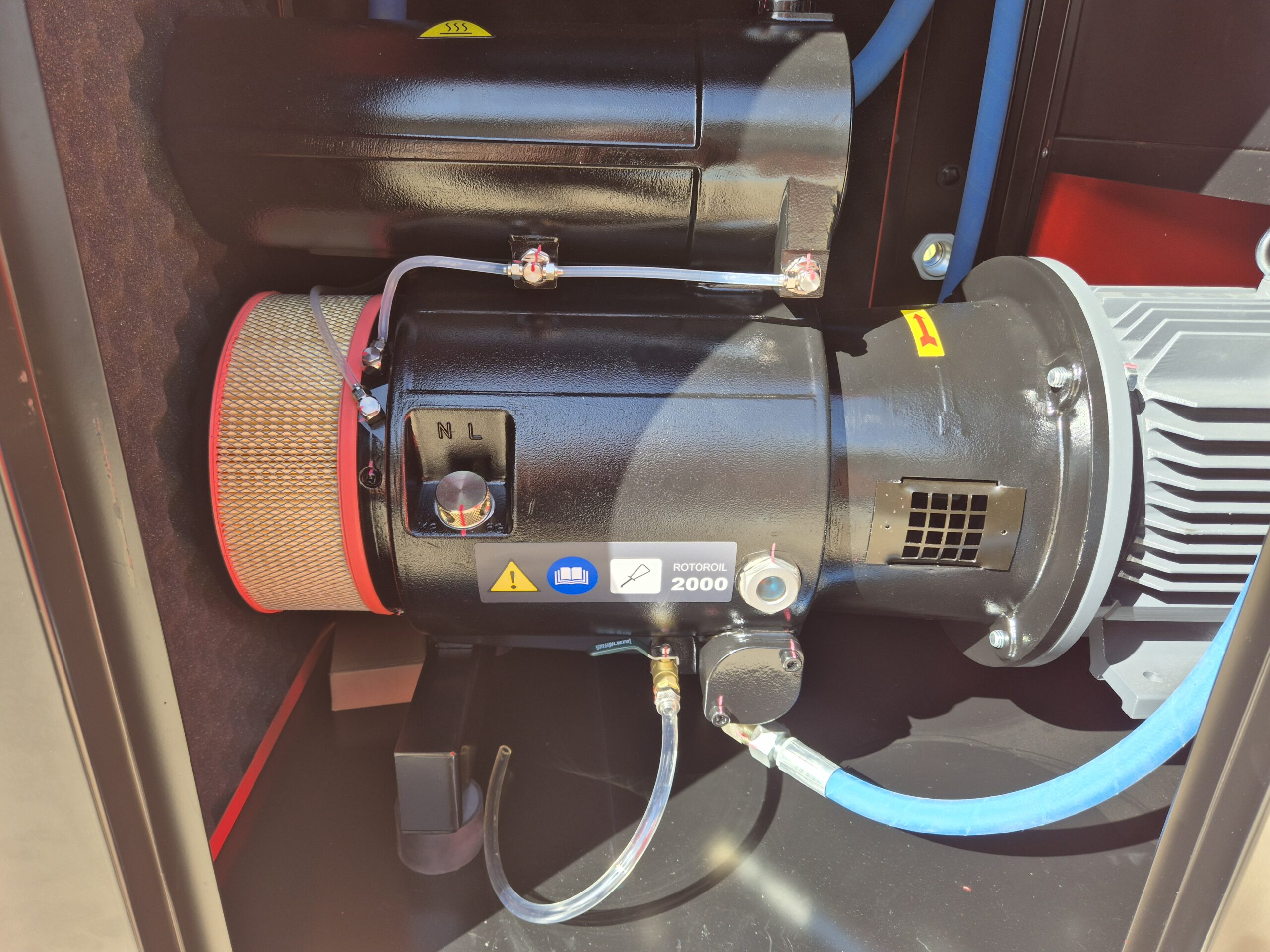

Direct Drive air end (no belts)
VSD (Variable Speed with Inverter Controller)

22KW (30HP) Three Phase Rotary Vane Compressor

Free Air Delivery:  3256L/min (115 CFM)
Max Pressure:  1000kPa (145 psi)
Motor: 30 HP
Tank size: NA
Electrical Supply: 32 AMP
Noise level: 62 dB(A)
Weight: 600kg
Dimensions (LxWxH): 151x 80 x 121 cm
WARRANTY:
Air Receiver: 7 years
Pump: 2 years
Motor and other parts: 1 year
