WP48/120 11.7hp Honda Petrol


Displacement: 1361 L/min (48.1 CFM)
Free Air Delivery: 1138 L/min (40.2 CFM)
Max Pressure: 965 kPa (140 psi)
Motor: Honda GX390
Pump Cylinders: 3
Tank size: 116 Litres
Noise level: 83 dB(A)
Weight: 193kg
Dimensions (LxWxH): 128 x 46 x 98 cm
Air Receiver: 5 years
Pump: 7 years
Honda Engine: 3 years
All other parts: 1 year


• Heavy duty slow revving pump
• AS1210 air receiver
• Stainless steel reed valves
• Genuine Honda petrol engine
• USA Conrader load genie valve and auto idle
• Replaceable cartridge element intake air filters
• Electric start engines with or without battery and leads are available as optional extras (cost applies)

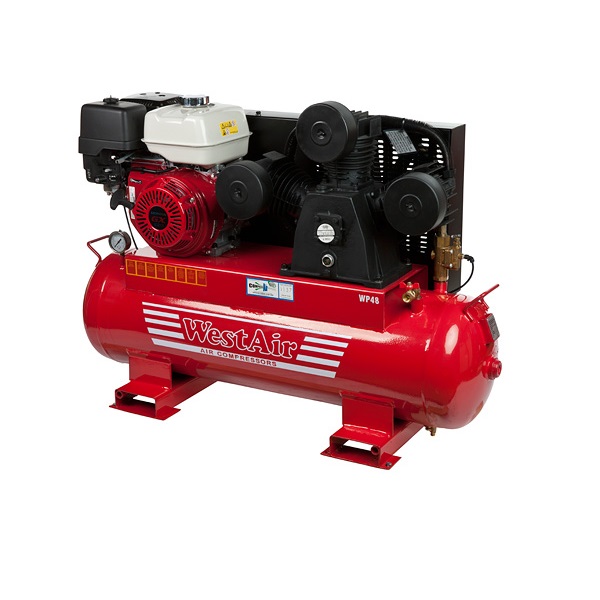

Our petrol Honda powered WP48/120 features a slow revving high output cast iron pump with replaceable cartridge element intake air filters on AS1210 160L air receiver with a quality load genie valve and auto idle. Factory set at 125psi cutout but adjustable to 140psi if required.

Powered by the legendary reliability of genuine Honda engines the Westair range of genuine Honda powered stationary air compressors are designed to tackle a wide range of applications where power isn’t available.

Download Brochure

Download Unit Parts Drawing

Download Pump Parts Drawing


Additional information

Weight 193 kg
Dimensions 128 × 46 × 98 cm
