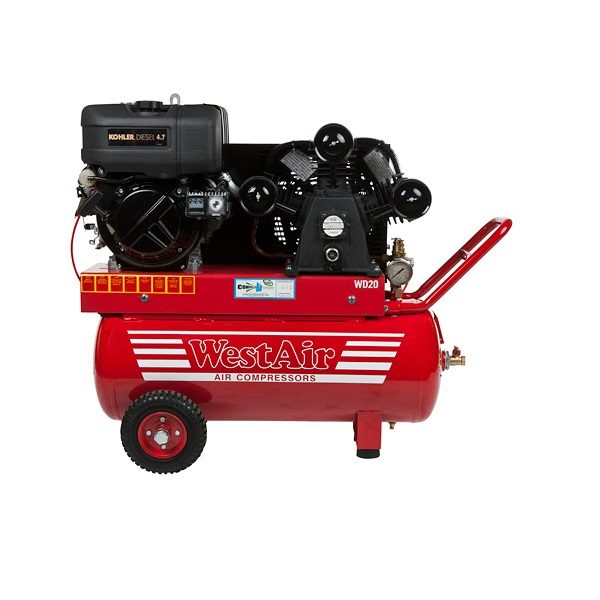

WD20/70 4.7hp Kohler Diesel

WD20/70 4.7hp Kohler Diesel

Powered by Electric Start Kohler diesel engines and backed by a long 3 year warranty the Westair range of Kohler powered portable and stationary air compressors are designed to tackle a wide range of applications where power isn’t available.

All Kohler powered compressors feature the USA Conrader load genie valve and auto idle system factory set at 135psi cutout but adjustable to 140psi if required as well as slow revving cast iron pumps with replaceable cartridge element intake air filters and AS1210 air receivers.

The Kohler engine comes with electric start as standard but does not come with battery and leads. These are available for an extra cost. .

Download Brochure

Download Unit Parts Drawing

Download Pump Parts Drawing



Description

Heavy duty slow revving pump
AS1210 air receiver
Stainless steel reed valves
Genuine electric start Kohler diesel engine
USA Conrader load genie valve and auto idle
Replaceable cartridge element pump intake air filters
Electric start engines fitted as standard – battery and leads available at extra cost

20CFM PORTABLE KOHLER POWERED DIESEL AIR COMPRESSOR

Displacement: 571 L/min (20.2 CFM)
Free Air Delivery: 416 L/min (14.7 CFM)
Max Pressure: 965 kPa (140 psi)
Motor: Kohler KD225
Pump Cylinders: 3
Tank size: 70 Litres
Noise level: 86 dB(A)
Weight: 90 kg
Dimensions (LxWxH): 100 x 48 x 75 cm
WARRANTY:
Air Receiver: 5 years
Pump: 7 years
Kohler Engine: 3 years
All other parts: 1 year
