Products

Displaying products labelled: WestAir Piston Air Compressors

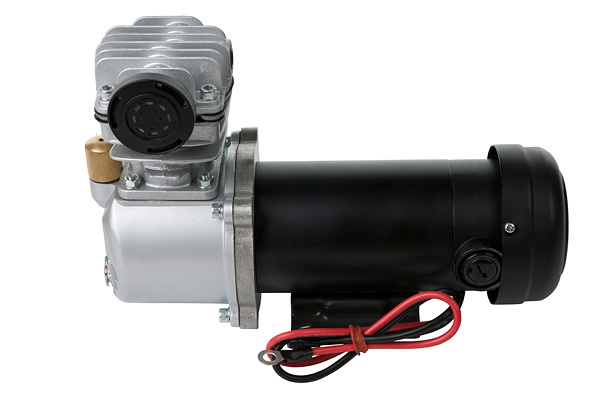

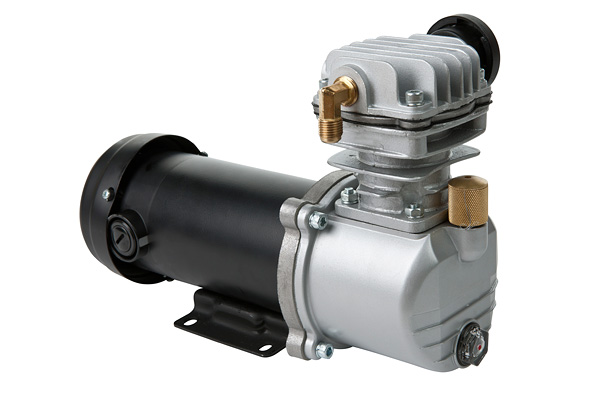

DC12
WESTAIR PISTON AIR COMPRESSORSTagged :
12 & 24 Volt

Oil filled aluminium piston compressor powered by a 12 volt electric motor. Ideal for the off road 4WD sector and also a wide variety of applications in heavier equipment such as air horns and air seats.

Designed to run on a 50% duty cycle, 20mins on 20mins off.

Specifications
DISP CFM
4

DISP L/M
113

FAD CFM
1.3

FAD L/M
37

HP
0.5

CYL
1

TANK
n/a

WEIGHT
7.5kg

DIMENSIONS (LxWxH)
33 x 12 x 21 cm

Product Photos

Download brochure

DC1208
WESTAIR PISTON AIR COMPRESSORSTagged :
12 & 24 Volt

Oil filled aluminium piston compressor powered by a 24 volt electric motor. Ideal for the off road 4WD sector and also a wide variety of applications in heavier equipment such as air horns and air seats. Tank mounted on a 8L receiver with auto cut in/cut out pressure switch and solenoid.

Designed to run on a 50% duty cycle, 20mins on 20mins off.

Specifications
DISP CFM
4

DISP L/M
113

FAD CFM
1.3

FAD L/M
37

HP
0.5

CYL
1

TANK
8Ltr

WEIGHT
16kg

DIMENSIONS (LxWxH)
42 x 38 x 33 cm

Product Photos

Download brochure

DC24
WESTAIR PISTON AIR COMPRESSORSTagged :
12 & 24 Volt

Oil filled aluminium piston compressor powered by a 24 volt electric motor. Ideal for the off road 4WD sector and also a wide variety of applications in heavier equipment such as air horns and air seats.

Designed to run on a 50% duty cycle, 20mins on 20mins off.

Specifications
DISP CFM
5.5

DISP L/M
155

FAD CFM
2.6

FAD L/M
74

HP
0.5

CYL
1

TANK
n/a

WEIGHT
7.5kg

DIMENSIONS (LxWxH)
33 x 12 x 21 cm

Product Photos

Download brochure

DC2408
WESTAIR PISTON AIR COMPRESSORSTagged :
12 & 24 Volt

Oil filled aluminium piston compressor powered by a 24 volt electric motor. Ideal for the off road 4WD sector and also a wide variety of applications in heavier equipment such as air horns and air seats. Tank mounted on a 8L receiver with auto cut in/cut out pressure switch and solenoid.

Designed to run on a 50% duty cycle, 20mins on 20mins off.

Specifications
DISP CFM
5.5

DISP L/M
155

FAD CFM
2.6

FAD L/M
74

HP
0.5

CYL
1

TANK
8L

WEIGHT
19.5kg

DIMENSIONS (LxWxH)
42 x 38 x 33 cm

Product Photos

Download brochure

WA20/110
WESTAIR PISTON AIR COMPRESSORSTagged :
Electric Three Phase

Our heavy duty 3 phase belt drives are designed to meet a wide range of industrial applications. Slow revving cast iron pumps with AS1210 certified air receivers, low amp draw MEPS 2 compliant motors and fully adjustable German Condor pressure switches across all models.

Selected models are also available with 175psi high pressure 2 stage pumps.

Selected models are also available in 480 volt Rural Power.

Specifications
DISP CFM
19.2

DISP L/M
543

FAD CFM
12.7

FAD L/M
360

HP
4

CYL
3

TANK
110Ltr

ELECTRICAL SUPPLY
 20AMPS

WEIGHT
140kg

DIMENSIONS (LxWxH)
135 x 40 x 85 cm

Product Photos

• Heavy duty slow revving pumps • AS1210 air receivers • Stainless steel reed valves • MEPS 2 high efficiency 3 phase motors • German Condor pressure switches

Download brochure | Pump Breakdown Drawing Download | Unit Breakdown Drawing Download

WA20/190VT
WESTAIR PISTON AIR COMPRESSORSTagged :
Electric Three Phase

Our heavy duty 3 phase belt drives are designed to meet a wide range of industrial applications. Slow revving bulletproof cast iron pumps with AS1210 certified air receivers, low amp draw MEPS 2 compliant motors and fully adjustable German Condor pressure switches across all models.

Selected models in our 3 phase range are now available with space saving vertical air receivers

Specifications
DISP CFM
19.2

DISP L/M
543

FAD CFM
12.7

FAD L/M
360

HP
4

CYL
3

TANK
190Ltr

ELECTRICAL SUPPLY
 20AMPS

WEIGHT
150kg

DIMENSIONS (LxWxH)
85 x 54 x 165 cm

Product Photos

• Heavy duty slow revving pump • AS1210 air receiver • Stainless steel reed valves • MEPS 2 high efficiency 3 phase motor • German Condor pressure switch • Space saving vertical tank design

Download brochure | Pump Breakdown Drawing Download | Unit Breakdown Drawing Download

WA25SC
WESTAIR PISTON AIR COMPRESSORSTagged :
Electric Three Phase Silent Cabinet

Our range of three phase silent cabinet air compressors offer an alternative for those applications which require a low level of noise output. Significant reductions in noise are achieved by using a steel cabinet lined with noise reduction insulation and slow revving cast iron pumps.

The WA25SC features a V Twin 2 cylinder slow revving cast iron pump with a MEPS 2 compliant 4 pole 3 phase electric motor.

Our commitment to quality means a German Condor pressure switch is used on all silent cabinet models as well as Schneider electrical contactors.

Note: The WA25SC does not come with an air receiver. Refer part WA25SCP for the package with 190L vertical air receiver.

Specifications
DISPLACEMENT CFM
27.8

FREE AIR DELIVERY LITRES PER MINUTE
573

ELECTRIC MOTOR
5.5HP

PUMP CYLINDERS
2

POWER CIRCUIT REQUIRED
20AMP 415 VOLTS

MAXIMUM PRESSURE
135PSI

NOISE LEVEL
68dB

OUTLET
3/4" BSP FEMALE

WEIGHT
230kg

DIMENSIONS (LxWxH)
70 x 75 x 105 cm

Product Photos

• German Condor pressure switch
• Schneider electrical contactors
• Slow revving cast iron pump
• Stainless steel reed valves
• Low speed 4 pole MEPS 2 compliant 3 phase electric motor
• Ducted cooling system with low discharge temperature
• Noise reduction insulated cabinet
• Removable panels for easy access during servicing

WARRANTY
PUMP: 3 YEARS
MOTOR AND OTHER PARTS: 1 YEAR

Download brochure

WA25SCP
WESTAIR PISTON AIR COMPRESSORSTagged :
Electric Three Phase Silent Cabinet

Our range of three phase silent cabinet air compressors offer an alternative for those applications which require a low level of noise output. Significant reductions in noise are achieved by using a steel cabinet lined with noise reduction insulation and slow revving cast iron pumps.

The WA25SCP package comes complete with WA25SC and a 190L AS1210 design registered vertical air receiver.

The WA25SC features a V Twin 2 cylinder slow revving cast iron pump with a MEPS 2 compliant 4 pole 3 phase electric motor.

Our commitment to quality means a German Condor pressure switch is used on all silent cabinet models as well as Schneider electrical contactors.

Specifications
DISPLACEMENT CFM
27.8

FREE AIR DELIVERY LITRES PER MINUTE
573

ELECTRIC MOTOR
5.5HP

PUMP CYLINDERS
2

POWER CIRCUIT REQUIRED
20AMP 415 VOLTS

MAXIMUM PRESSURE
135PSI

NOISE LEVEL
68dB

OUTLET
3/4" BSP FEMALE

AIR RECEIVER
190L

WEIGHT - COMPRESSOR
230kg

DIMENSIONS - COMPRESSOR (LxWxH)
70 x 75 x 105 cm

WEIGHT - RECEIVER
100kg

DIMENSIONS - RECEIVER(LxWxH)
70 x 75 x 105 cm

Product Photos

• German Condor pressure switch
• Schneider electrical contactors
• Slow revving cast iron pump
• Stainless steel reed valves
• Low speed 4 pole MEPS 2 compliant 3 phase electric motor
• Ducted cooling system with low discharge temperature
• Noise reduction insulated cabinet
• Removable panels for easy access during servicing

WARRANTY
RECEIVER: 5 YEARS
PUMP: 3 YEARS
MOTOR AND OTHER PARTS: 1 YEAR

Download brochure

WA27/110
WESTAIR PISTON AIR COMPRESSORSTagged :
Electric Three Phase

Our heavy duty 3 phase belt drives are designed to meet a wide range of industrial applications. Slow revving cast iron pumps with AS1210 certified air receivers, low amp draw MEPS 2 compliant motors and fully adjustableGerman Condor pressure switches across all models.

Selected models are also available with 175psi high pressure 2 stage pumps.

Selected models are also available in 480 volt Rural Power.

Specifications
DISP CFM
26.3

DISP L/M
744

FAD CFM
18.0

FAD L/M
509

HP
5.5

CYL
2

TANK
110Ltr

ELECTRICAL SUPPLY
 20AMPS

WEIGHT
160kg

DIMENSIONS (LxWxH)
135 x 45 x 85 cm

Product Photos

• Heavy duty slow revving pump • AS1210 air receiver • Stainless steel reed valveS • MEPS 2 high efficiency 3 phase motor • German Condor pressure switch

Download brochure | Pump Breakdown Drawing Download | Unit Breakdown Drawing Download

WA27/190VT
WESTAIR PISTON AIR COMPRESSORSTagged :
Electric Three Phase

Our heavy duty 3 phase belt drives are designed to meet a wide range of industrial applications. Slow revving bulletproof cast iron pumps with AS1210 certified air receivers, low amp draw MEPS 2 compliant motors and fully adjustable German Condor pressure switches across all models.

Selected models in our 3 phase range are now available with space saving vertical air receivers

Specifications
DISP CFM
26.3

DISP L/M
744

FAD CFM
18.0

FAD L/M
509

HP
5.5

CYL
2

TANK
190Ltr

ELECTRICAL SUPPLY
 20AMPS

WEIGHT
160kg

DIMENSIONS (LxWxH)
85 x 54 x 170 cm

Product Photos

• Heavy duty slow revving pump • AS1210 air receiver • Stainless steel reed valves • MEPS 2 high efficiency 3 phase motor • German Condor pressure switch • Space saving vertical tank design

Download brochure | Pump Breakdown Drawing Download | Unit Breakdown Drawing Download

WA35/110
WESTAIR PISTON AIR COMPRESSORSTagged :
Electric Three Phase

Our heavy duty 3 phase belt drives are designed to meet a wide range of industrial applications. Slow revving cast iron pumps with AS1210 certified air receivers, low amp draw MEPS 2 compliant motors and fully adjustable German Condor pressure switches across all models.

Selected models are also available with 175psi high pressure 2 stage pumps.

Selected models are also available in 480 volt Rural Power.

Specifications
DISP CFM
34.0

DISP L/M
 962

FAD CFM
28.3

FAD L/M
803

HP
7.5

CYL
3

TANK
110Ltr

ELECTRICAL SUPPLY
 20AMPS

WEIGHT
175kg

DIMENSIONS (LxWxH)
135 x 50 x 100 cm

Product Photos

• Heavy duty slow revving pump • AS1210 air receiver • Stainless steel reed valves • MEPS 2 high efficiency 3 phase motor • German Condor pressure switch

Download brochure | Pump Breakdown Drawing Download | Unit Breakdown Drawing Download

WA35/190VT
WESTAIR PISTON AIR COMPRESSORSTagged :
Electric Three Phase

Our heavy duty 3 phase belt drives are designed to meet a wide range of industrial applications. Slow revving bulletproof cast iron pumps with AS1210 certified air receivers, low amp draw MEPS 2 compliant motors and fully adjustable German Condor pressure switches across all models.

Selected models in our 3 phase range are now available with space saving vertical air receivers

Specifications
DISP CFM
34.0

DISP L/M
 962

FAD CFM
28.3

FAD L/M
803

HP
7.5

CYL
3

TANK
190Ltr

ELECTRICAL SUPPLY
 20AMPS

WEIGHT
175kg

DIMENSIONS (LxWxH)
 85 x 54 x 172 cm

Product Photos

• Heavy duty slow revving pump • AS1210 air receiver • Stainless steel reed valves • MEPS 2 high efficiency 3 phase motor • German Condor pressure switch • Space saving vertical tank design

Download brochure | Pump Breakdown Drawing Download | Unit Breakdown Drawing Download
